Twist Machine Paddle Shifter Dimensions

Overview

Below are drawings of the basic paddle shifter body with sport paddles.

Dimensions for the D9 paddles are similar.
All measurements are in inches.
The paddle shifter body mounts to a GM style steering column with a 11/16"/.690” x 36 spline shaft.

Top View of Paddle Shifter Body and Paddles

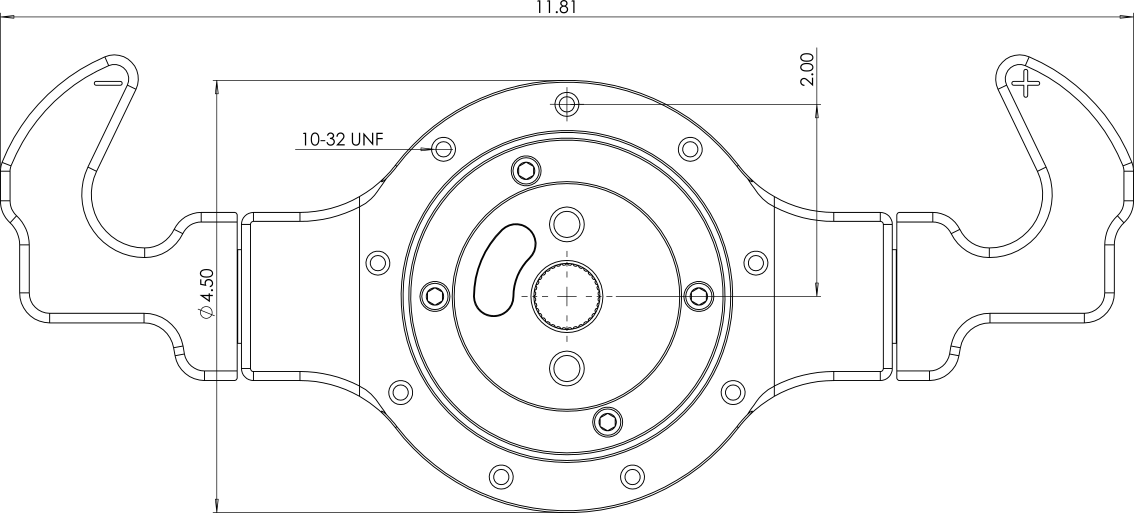

Sport Paddle Shifter Top View.png — TOP VIEW

Bottom View of Paddle Shifter Body and Paddles

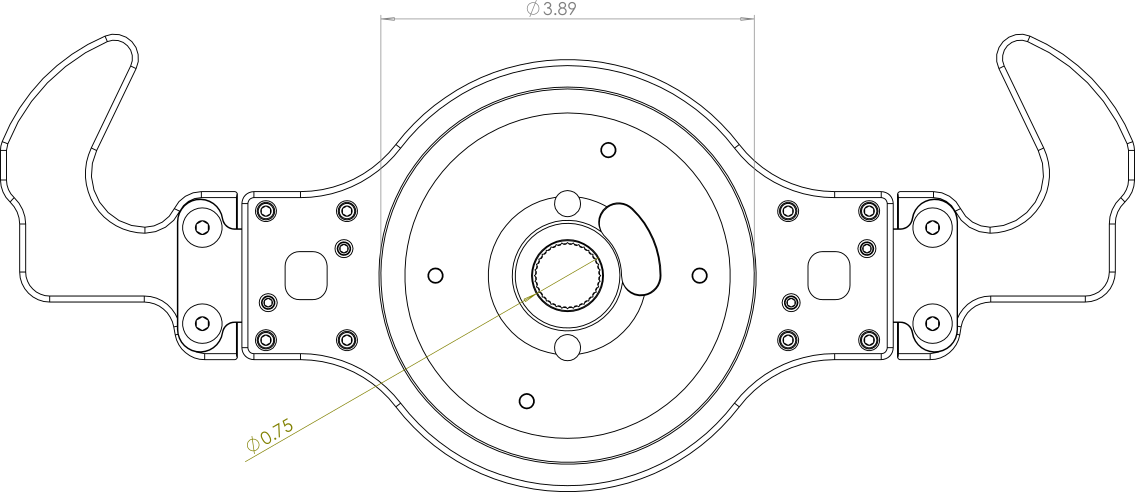

Sport Paddle Shifter Bottom View.png — BOTTOM VIEW

Side View of Paddle Shifter Body and Paddles

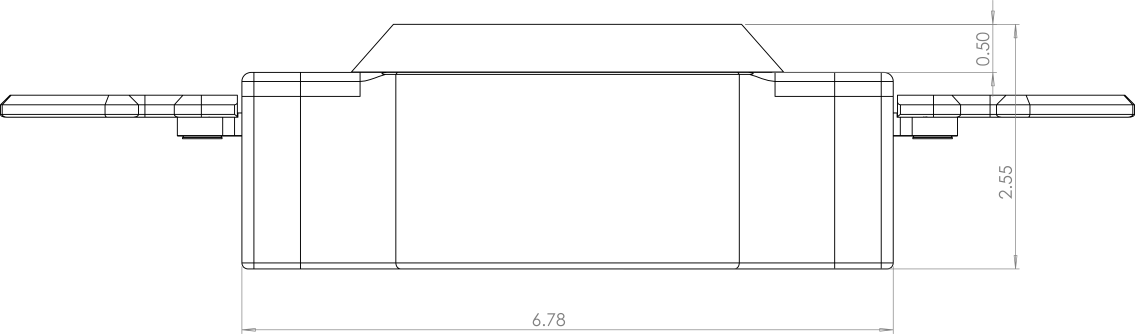

Sport Paddle Shifter Side View.png — SIDE VIEW

Five and Six Bolt Steering Wheel Hub

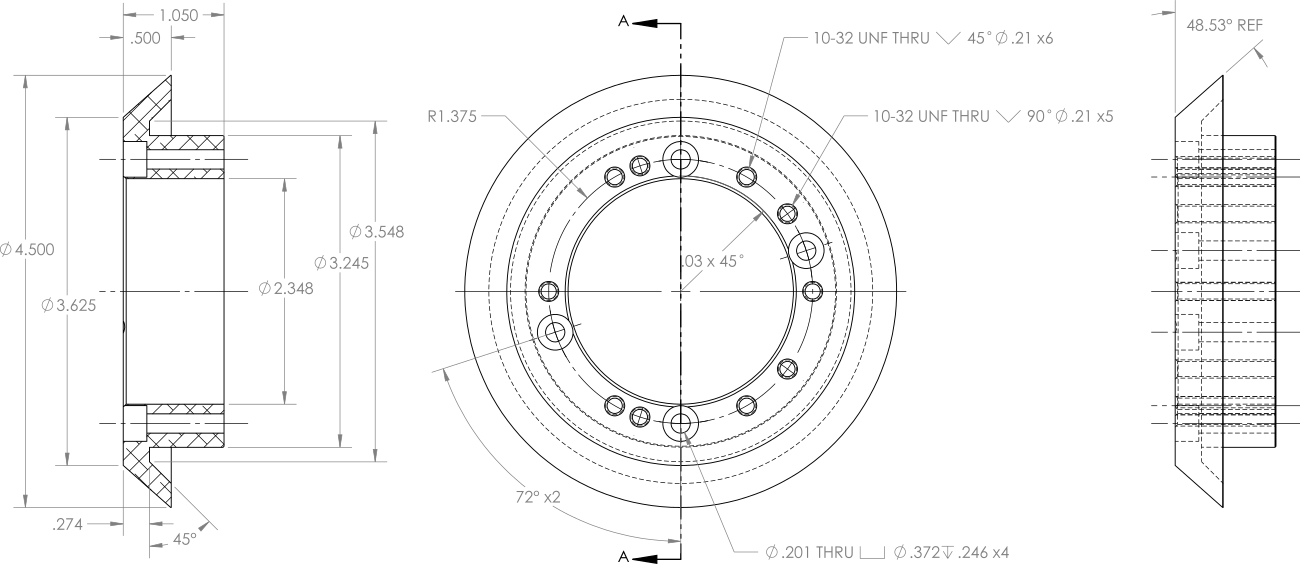

5 AND 6 BOLT HUB
